8-Port 10/100/1000Mbps Gigabit Ethernet Switch (Plastic)
Overview
Optimal Solution for Energy-Saving and Gigabit High Performance
In line with the energy-saving trend worldwide, PLANET delivers the new generation green Switch- GSD series Gigabit Ethernet Switch. In the GSD series, the GSD-804 8-Port Gigabit Ethernet Switch brings both benefits of energy saving and Gigabit performance. It is specially designed for home networking, SOHO and enterprises. The GSD-804 uses new engine that provides power saving up to 40% less energy without reducing the performance.
The GSD-804 incorporates two advanced Green Networking technologies:
• Hibernation Link Down power saving
• Intelligent scales power based on cable length
The Hibernation Link Down power savings goes beyond IEEE specifications to automatically lower power for a given port when it is not linked. With the Hibernation Link Down power savings technology, the GSD-804 will automatically adjusts power usage of the ports that are shutdown or not connected to network device. The other technology adopted, intelligent scales power, is an algorithm that actively determines the appropriate power level based on cable length. When connecting to the GSD-804 with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSD-804 would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce overall power consumption, which makes a significant contribution to energy saving. |
| |
|
|
| |
|
|
| |
Lead Home, SOHO and Workgroup users into High-Speed Networking Generation
The GSD-804 is designed with modern plastic compact housing and easy for deployment of high speed Gigabit networking in home or SOHO applications. Providing 16Gbps internal switching fabric, the GSD-804 can handle extremely large amounts of data in a secure topology linking to a backbone or high capacity servers. The GSD-804 provides 8K MAC address table and 1Mbits buffer memory. The device offers wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network upgrading to a Gigabit environment.
Plug & Play
All RJ-45 copper interfaces in the GSD-804 support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 5, 5e or 6 cables. They support standard Auto-MDI/MDI-X feature which can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. |
| |
|
| Ordering Information |
| GSD-804 |
8-Port 10/100/1000Mbps Gigabit Ethernet Switch (Plastic case) |
Application
Backbone Switch
The GSD-804 can directly connect to department Switches or backbone servers. With up to 16 Gigabit per second of non-blocking switch fabric, the GSD-804 can be used to build a Gigabit high-bandwidth switched network quickly and easily.
Home/SOHO High Speed Network Center

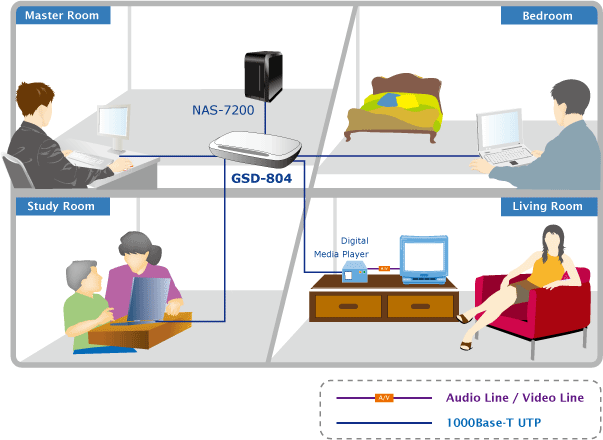

The GSD-804 Gigabit Ethernet Switch provides the best solution of high-speed Internet environment demanded by SOHO / Home and Power users. The GSD-804 accelerates the speed of data transmission between devices without worrying about the delay of high quality multimedia display. In the aspect of home-using, the GSD-804 integrates the speeds of 10, 100 and 1000Mbps which can fulfill your demands of transmitting high quality multimedia, games and other high speed Internet applications. |
| |
|
|
| |
|
| Ordering Information |
| GSD-804 |
8-Port 10/100/1000Mbps Gigabit Ethernet Switch (Plastic case) |
Key Features
‧Power Saving ability for Green networking
‧Complies with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX and IEEE 802.3ab, 1000Base-T
‧IEEE 802.3x, Full-Duplex flow control compliant; Back-pressure, Half-Duplex flow control
‧8 10/100/1000Mbps Gigabit Ethernet ports
‧Supports Auto-MDI, MDI-X detection
‧Integrated address look-up engine, supports 8K absolute MAC addresses
‧1Mbits on-chip frame buffer
‧9K Jumbo packet size support
‧Features Store-and-Forward mode with wire-speed filtering and forwarding rates
‧Non-blocking, Store and Forward switching architecture
‧Automatic source address learning and aging
‧Compact size, wall-mountable design ideal for installation in space-limited locations |
| |
|
| Ordering Information |
| GSD-804 |
8-Port 10/100/1000Mbps Gigabit Ethernet Switch (Plastic case) |
Specification
| Hardware Specification |
| 10/100/1000Base-T Ports |
8 Auto MDI/MDIX ports |
| Enclosure |
Plastic |
| Dimensions (W xD x H) |
168 x 100 x 29 mm |
| Weight |
183g |
| Power Requirement (External power adapter) |
DC 5V, 1A |
| Power Consumption (100M Full operating) |
6.2 Watts / 21 BTU |
| Switch Specification |
| Switch Processing Scheme |
Store-and-Forward |
| Address Table |
8K entries |
| Flow Control |
Back pressure Half Duplex, IEEE 802.3x Pause Frame Full Duplex |
| Switch fabric |
16Gbps |
| Throughput (packet per second) |
11.9Mpps |
| Jumbo packet size |
9K |
| Standards Conformance |
| Standards Compliance |
IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Full-Duplex Flow Control) |
| Temperature |
Operating: 0~50 Degree C
Storage: -20~70 Degree C |
| Humidity Operating |
Operating: 5~90%, Storage: 5~90% (Non-condensing) |
| Regulation Compliance |
FCC Part 15 Class B, CE |
|
| Ordering Information |
| GSD-804 |
8-Port 10/100/1000Mbps Gigabit Ethernet Switch (Plastic case) |
